OVERVIEW

The Wolff Audio Tutti is a meticulously crafted 500 Series microphone and instrument preamp that captures the unmistakable character of the legendary “Floater” preamp used in the original Studio 1 console at Sunset Sound Recorders in Hollywood. Developed as a collaboration between Wolff Audio and Sunset Sound, the Tutti pays tribute to pioneering audio engineer Tutti Camarata, whose innovative console design helped shape the sound of thousands of iconic recordings.

Working closely with Tutti’s son, Paul Camarata, legendary console designer Paul Wolff recreated the sonic DNA of the original circuit in a modern 500 Series format. Authenticity was paramount, which is why the design features custom dual Cinemag nickel transformers created by renowned transformer designer David Geren, whose work was also used in the original console.

With discrete dual 990 op-amps, more than 60dB of gain, and ultra-low distortion, the Tutti delivers the warmth, punch, and clarity that defined classic Sunset Sound recordings. Its elegant yet simple design provides exceptional headroom and a remarkably wide frequency response, making it an ideal choice for capturing vocals, instruments, and performances with timeless analogue character.

KEY HIGHLIGHTS

Authentic Sunset Sound Console Heritage

The Tutti preamp recreates the famous “Floater” microphone preamp originally installed in the Studio 1 console at Sunset Sound Recorders, bringing the sound of legendary recordings to modern studios.

Designed by Industry Legends

Developed by Paul Wolff in collaboration with Paul Camarata, the Tutti honours the innovative engineering of Tutti Camarata while adapting the design for modern 500 Series systems.

Custom Cinemag Transformer Design

The Tutti features custom dual Cinemag nickel input and output transformers designed by David Geren, delivering the rich harmonic character and musical depth associated with classic analogue consoles.

Discrete Analogue Signal Path

With dual discrete 990 op-amps and high-quality components throughout, the Tutti provides exceptional headroom, ultra-low distortion, and a detailed yet warm analogue sound.

Wide Bandwidth and High Headroom

Offering more than 60dB of gain and a frequency response from 10Hz to 60kHz, the Tutti captures everything from subtle nuances to powerful performances with clarity and depth.

FEATURES

• 500 Series discrete microphone and instrument preamp
• Inspired by the legendary “Floater” preamp from Sunset Sound Studio 1
• Collaboration between Wolff Audio and Sunset Sound Recorders

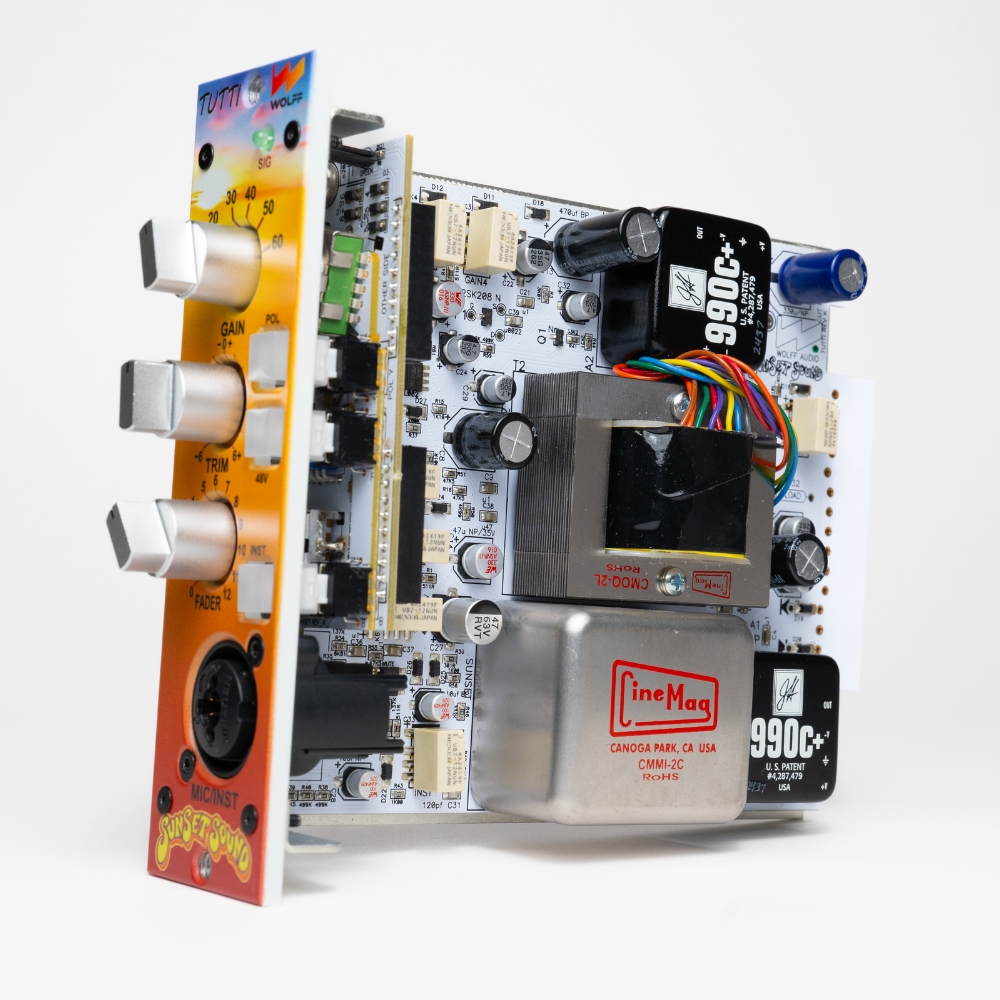

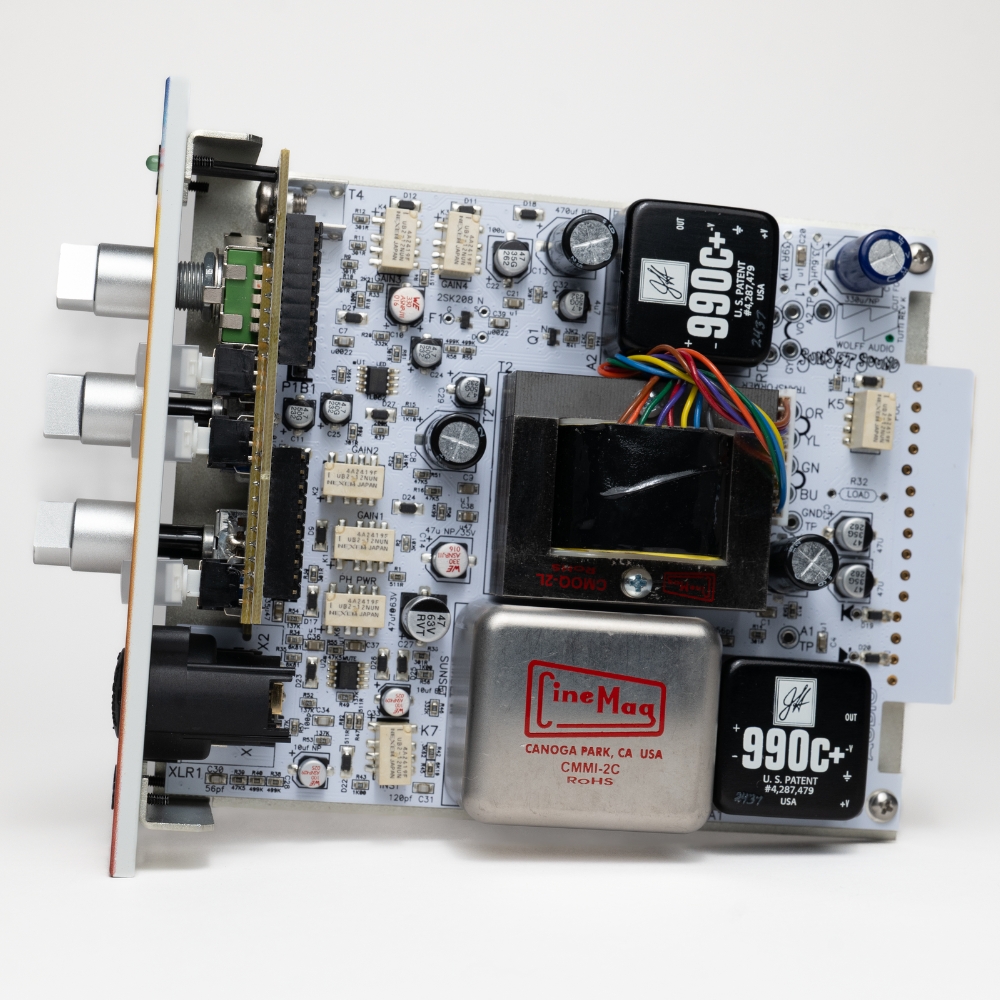

• Custom dual Cinemag nickel input/output transformers
• Discrete dual 990 op-amps
• More than 60dB of gain

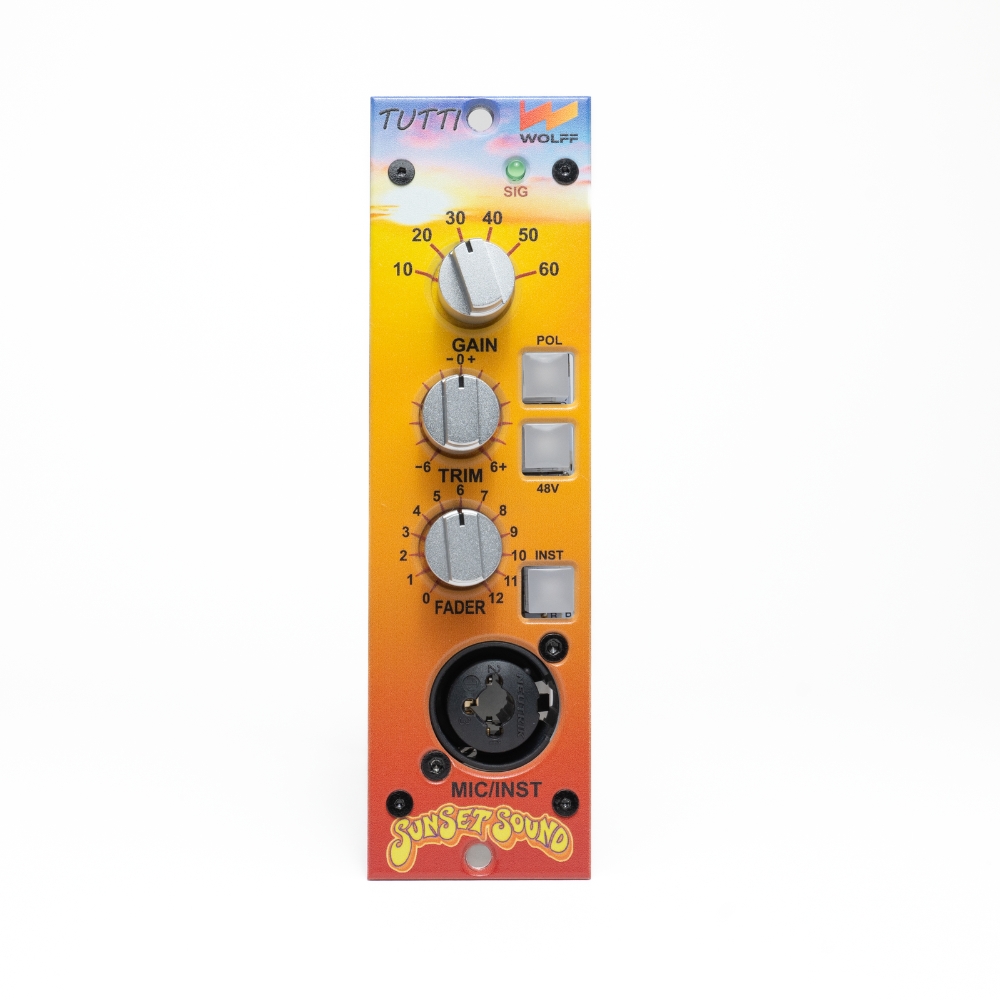

• Output level control with continuous fader
• Front panel instrument input
• Phantom power switching with silent operation
• Ultra-low distortion and wide bandwidth

TECHNICAL SPECS

Format: 500 Series

Gain: More than 60dB

Distortion: Less than 0.03% below 100Hz

Frequency Response: 10Hz – 60kHz

Clip Onset: +28 dBu

Input Transformers: Custom Cinemag nickel

Output Transformers: Custom Cinemag nickel

Op-Amps: Discrete dual 990

Front Connector: Mic 150/1500Ω; TRS instrument input 100KΩ

Phase Response: Minimal phase shift within usable range

Phantom Power: Selectable with pop-free switching

Power Consumption: <100 mA per rail

Shipping Weight: 3.62 kg (7 lbs.)
