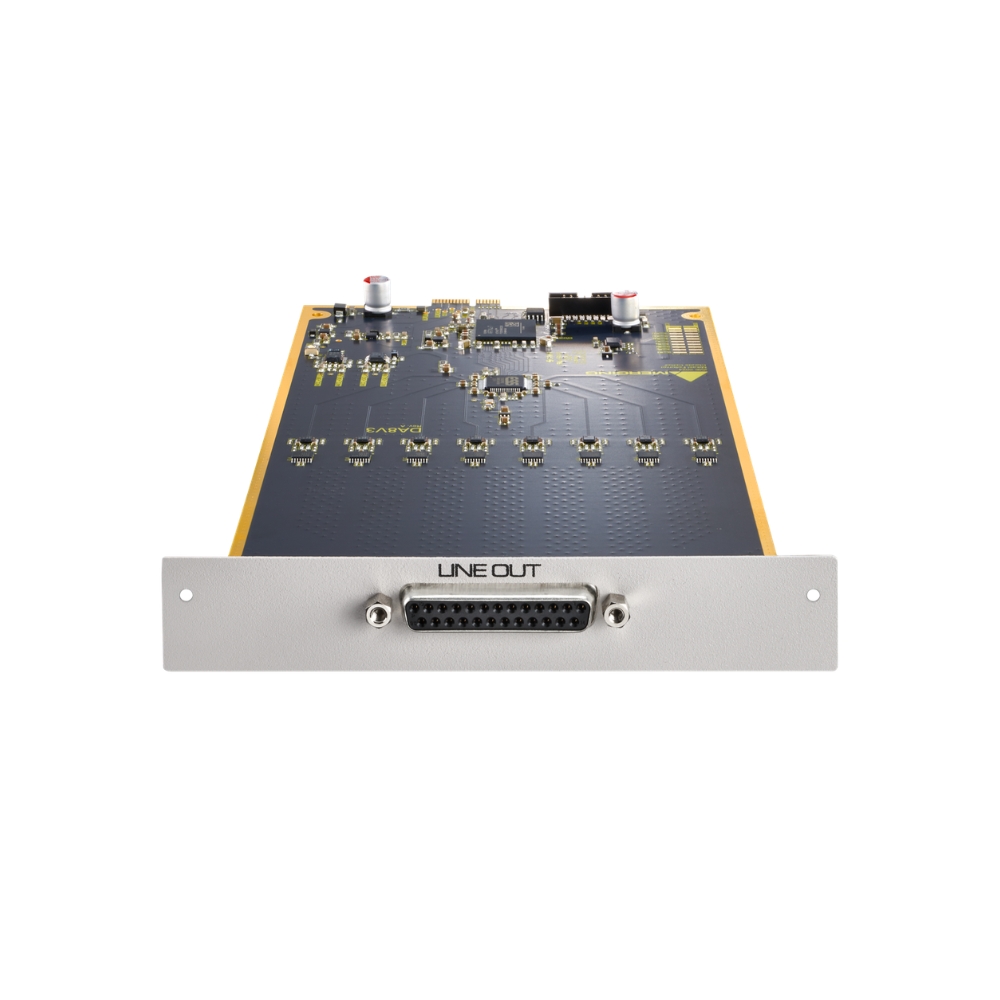

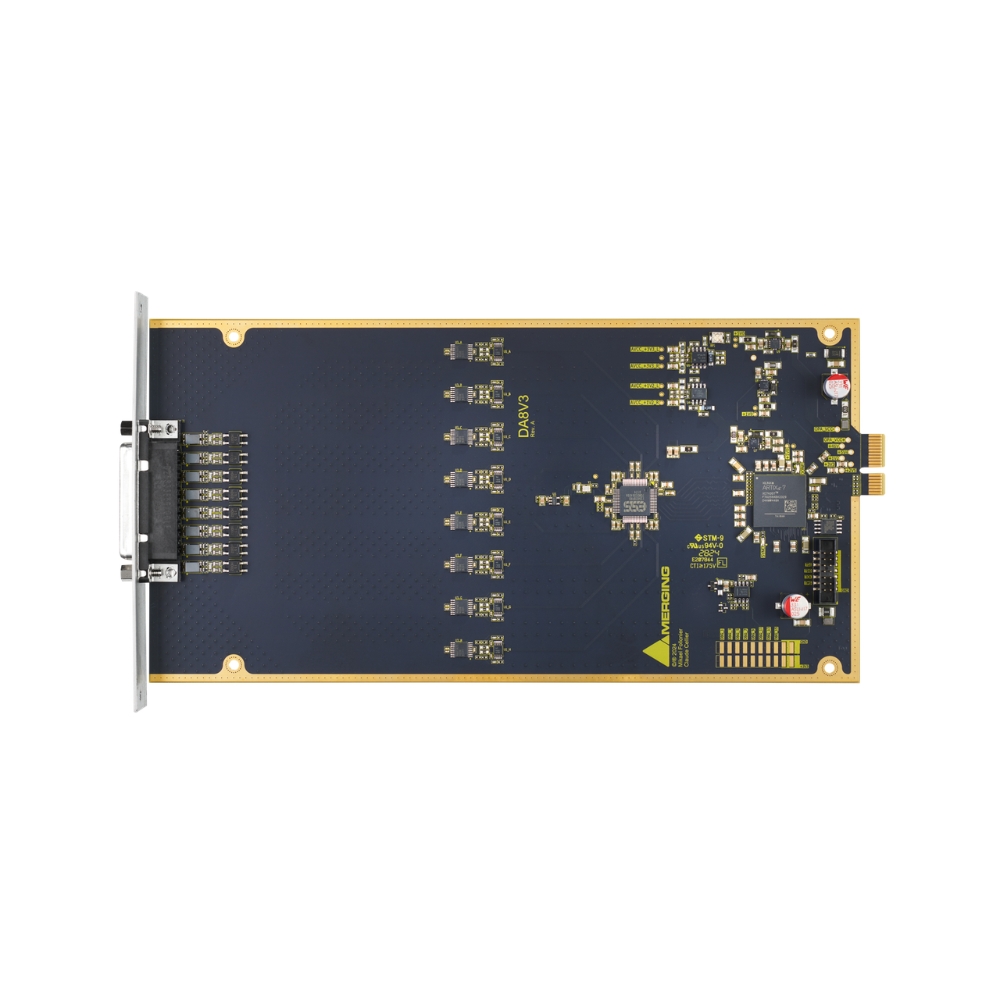

Merging Technologies DA8V3P – 8-Channel Line D/A Converter Card for HAPI MKIII (DSD/DXD)

OVERVIEW

The Merging Technologies DA8V3P is a premium 8-channel line D/A converter card designed specifically for the HAPI MKIII modular networked audio interface. Supporting PCM sample rates up to 384kHz, DXD and DSD256, it delivers world-class analogue output performance for professional recording, mastering, broadcast, immersive audio and critical monitoring applications. With a typical dynamic range of 128dB (A-weighted), exceptionally low THD+N and remarkably low noise floor, the DA8V3P has earned a reputation as one of the finest multichannel D/A conversion solutions available.

Every DA8V3P card is individually measured to the highest manufacturing tolerances, ensuring exceptional consistency and transparency across all eight output channels. Advanced low-phase-noise oscillator circuitry minimises jitter for improved stereo imaging and detail, while integrated analogue auto-mute circuitry prevents clicks and pops during power cycling or sample-rate changes, protecting both loudspeakers and listeners. Digitally controlled output trims and selectable international operating levels further simplify system integration in professional installations.

Designed for engineers who demand uncompromising audio quality, the DA8V3P combines reference-grade performance with seamless integration into the HAPI MKIII platform. Whether used in mastering studios, Dolby Atmos facilities, classical recording, broadcast production or mission-critical monitoring environments, it delivers the precision, transparency and reliability expected from Merging Technologies’ premium conversion systems.

KEY HIGHLIGHTS

Premium DXD & DSD Conversion

Supports PCM sample rates up to 384kHz, DXD and DSD formats up to DSD256, making it ideal for the highest-resolution recording and playback workflows.

Eight High-Performance Line Outputs

Provides eight premium balanced analogue outputs via a DB-25 connector using the AES59 (Tascam) standard for professional studio integration.

Exceptional Analogue Performance

Delivers up to 128dB (A-weighted) dynamic range with THD+N below -116dB, providing outstanding clarity, transparency and low-noise performance.

Ultra-Low Jitter Design

Low-phase-noise oscillator circuitry significantly reduces jitter and timing errors for improved stereo imaging, transient accuracy and sonic detail.

Speaker Protection

Integrated analogue auto-mute circuitry prevents unwanted clicks and pops during power-up, shutdown and sample-rate changes for safer operation.

Precision System Integration

Features digitally controlled output trims, selectable operating levels and software-adjustable calibration for straightforward installation into professional production environments.

FEATURES

• Premium 8-channel line D/A converter card for the Merging Technologies HAPI MKIII.
• Supports PCM sample rates up to 384kHz, DXD and DSD64, DSD128 and DSD256.
• Eight balanced analogue line outputs via AES59/Tascam DB-25 connector.
• Premium-grade digital-to-analogue conversion for mastering, broadcast and immersive audio.
• Typical dynamic range of up to 128dB (A-weighted).
• Ultra-low THD+N of less than -116dB (0.00015%).
• Low-phase-noise oscillator circuitry reduces jitter and improves stereo imaging.
• Analogue auto-mute circuitry eliminates clicks and pops during power cycling and sample-rate changes.
• Individually measured and calibrated for the highest manufacturing tolerances.
• Digitally controlled output trims simplify system alignment and calibration.
• Selectable international operating levels via software and DIP switch configuration.
• Fast converter latency with selectable filter characteristics.
• Fully compatible with Merging Technologies HAPI MKIII modular networked audio interface.
• Designed for professional recording, mastering, broadcast, post-production and immersive audio applications.

TECHNICAL SPECS

General

Product Type: 8-Channel Line Digital-to-Analogue Converter Card

Compatibility: Merging Technologies HAPI MKIII

Conversion: Premium Digital to Analogue (D/A)

Application: Professional recording, mastering, broadcast, immersive audio and monitoring

Audio Performance

Maximum Sample Rate (PCM): Up to 384kHz (DXD)

DSD Support: DSD64, DSD128, DSD256

Bit Depth: 24-bit

Dynamic Range: 125dB (20Hz–20kHz), 128dB (A-weighted typical)

THD+N: < -116dB (0.00015%)

Interchannel Crosstalk: -140dB @ 1kHz (typical)

Noise Floor: Less than -125dB

Low Phase Noise Oscillator: Yes

Auto-Mute Protection: Yes

Frequency Response

48kHz PCM: 0Hz–20kHz (±0.3dB)

DSD: 0Hz–20kHz (±0.3dB)

Extended DSD: 0Hz–50kHz (-3dB)

Analogue Outputs

Channels: 8 Balanced Line Outputs

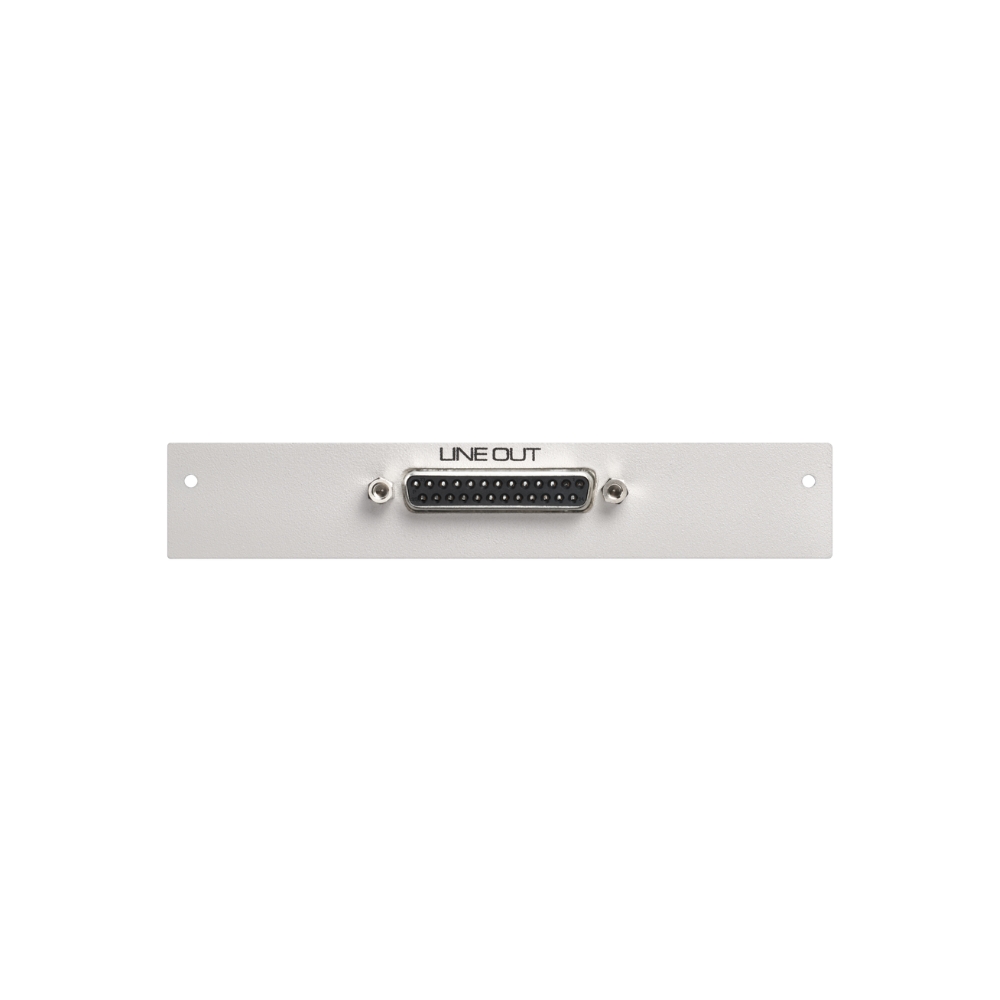

Connector: 1 x DB-25 Female (AES59/Tascam)

Maximum Output Level: +25dBu (24dBu setting)

Alternative Output Level: +19dBu (18dBu setting)

Output Impedance: 90Ω

Output Trim: Software adjustable

Gain Step: 0.5dB

Latency

Slow Roll-Off Filter: 9 samples

Sharp Roll-Off Filter: 35 samples

Compatibility

Designed exclusively for the Merging Technologies HAPI MKIII

Supports PCM, DXD and DSD production workflows

Fully integrated with Merging Technologies software ecosystem

Physical

Connector Format: DB-25 Female (AES59/Tascam Analogue)

Installation: Internal expansion card for HAPI MKIII

Included

Merging Technologies DA8V3P Premium 8-Channel Line D/A Converter Card

Documentation

Manufacturer Warranty
